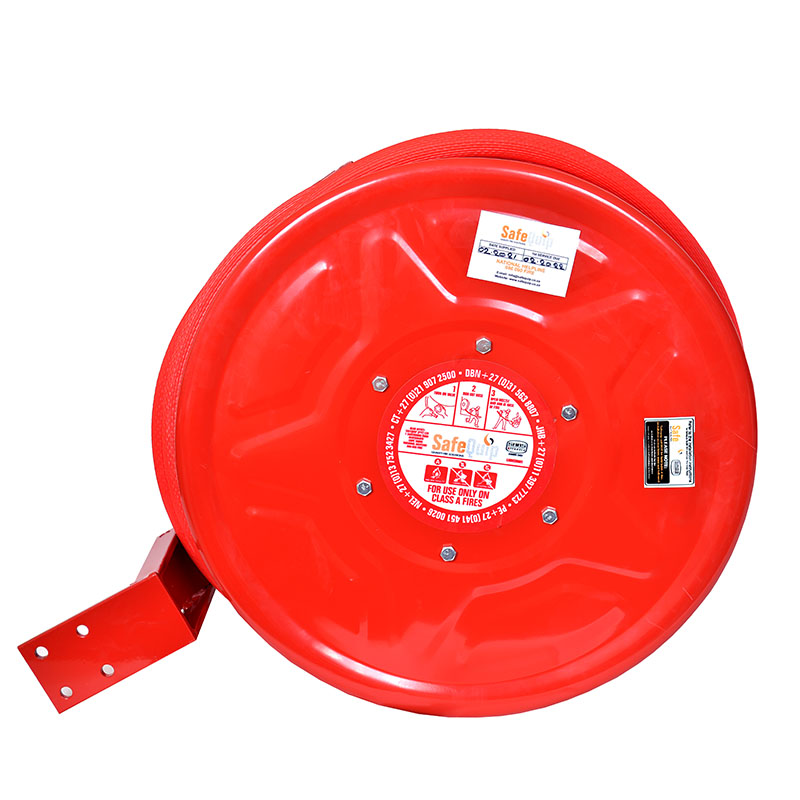

Fire Hose Reel (Swing Type)

Fire Hose Reel (Swing Type)

A premium SABS-certified swing-type fire hose reel equipped with a swivel wall-mounted bracket, hose guide, durable nozzle, and 30m SANS 1086 hose. Designed for effortless deployment and enhanced accessibility in commercial and industrial environments.

REF. 002/0038

Spread the word

Sharing is the key to unlocking a world of possibilities!

Description

The Fire Hose Reel (Swing Type) is a high-quality SABS-certified reel engineered for environments where improved accessibility is essential. Featuring a swing-away wall-mounted bracket, hose guide, durable nozzle, and a full 30m SANS 1086 fire hose, this unit allows the reel drum to pivot away from the wall for easier, more efficient operation during emergencies.

Certified according to SANS 543 and equipped with an industrial-grade hose, this swing-type model enables smooth unwinding and rapid hose deployment. Its pivoting design also makes it ideal for installations where space constraints or angled hose direction require additional flexibility.

Beyond firefighting applications, this reel provides a practical, space-saving solution for any facility needing reliable water access, ensuring hoses remain organized, protected, and easily accessible at all times.

Specifications
Mass without hose7.87kg
Mass with hose19.4kg
Disc diameter575mm
Height (bracket)660mm
Height (bracket & valve)710mm
Wall protectionCabinet
Wall projection290mm
HoseSANS 1086 PVC
Hose dimensionID 20mm × 30mm
Valve25mm BSP CP
Length of jet10m @ 0.2MPa
Discharge rate30 litres/min @ 300kPa
