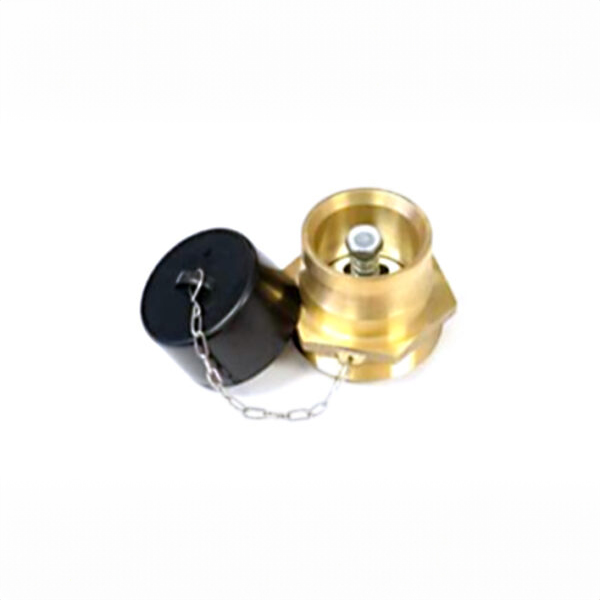

The Booster Connector is a premium-quality component engineered from corrosion-resistant materials to ensure long-lasting durability. Designed with modern ‘O’-Ring sealing technology, it delivers leak-proof, trouble-free performance even under demanding operating pressures. Its advanced internal valve design promotes efficient water flow, while the tapered thread eliminates common jointing issues that traditionally occur during installation.

Application

Suitable for a range of fire protection systems, in accordance with Local Authority requirements and standard Fire Codes:

• Automatic Sprinkler Systems
• Fire Hydrant Systems

Features

• Porosity-free forged brass body and valve clack
• Stainless steel valve shaft and spring for enhanced durability
• Special sealing ring for reliable performance
• Tapered thread ensures a secure, watertight connection
• Snap-on rubber protective cap included
• Precision CNC machining for consistent accuracy
• Simple O-Ring replacement without dismantling the valve assembly

Specifications

• Materials: Brass and Stainless Steel
• Thread: 80mm nominal bore pipe thread (tapered 3″ B.S.P. to BS 21.173)
• Hose Coupling: Male, instantaneous
• Weight: 2kg
• Flow at 200 kPa: 1200 l/min
• Test Pressure: 2000 kPa
